OTDR Optical Fiber Tester Mini-Pro SM 1310/1550nm with Event Map.Multi-Function Tester OPM,OLS,RJ45,VFL.Test Range 10m-60km Dynamic Range 24db/22db Connector UPC with FC/UPC-FC/APC-SX and FC/SC

Overview

• Brand : groword
• Power Source : Battery Powered
• Color : Blue

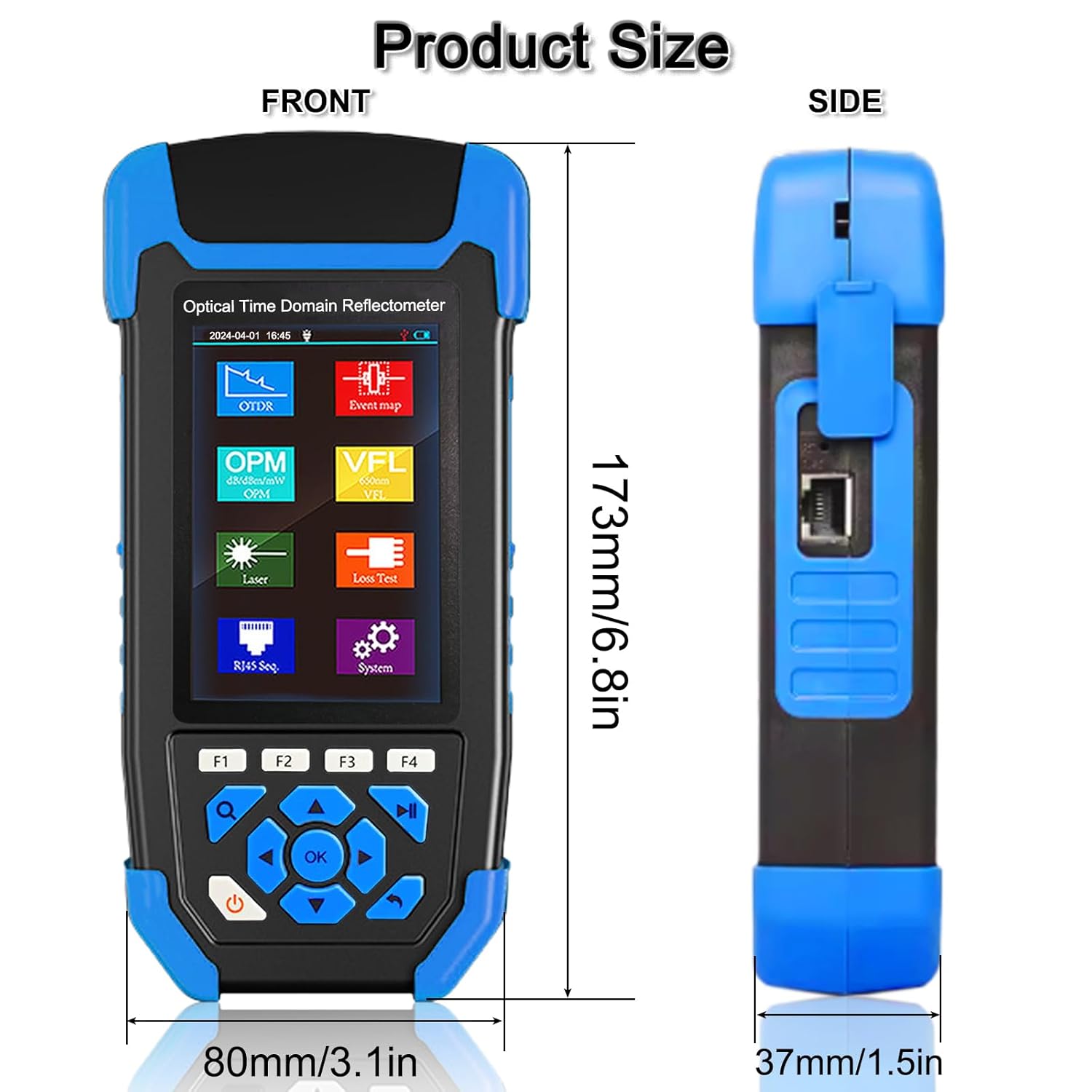

• Item Weight : 0.57 Kilograms
• Lower Temperature Rating : 1E+1 Degrees Celsius

About this item

• 【ALL-IN-ONE TOOL】: Used for evaluating the construction and maintenance of FTTx and access networks, identifying optical fiber breakpoints, measuring fiber cable length, and calculating relative optical power loss.

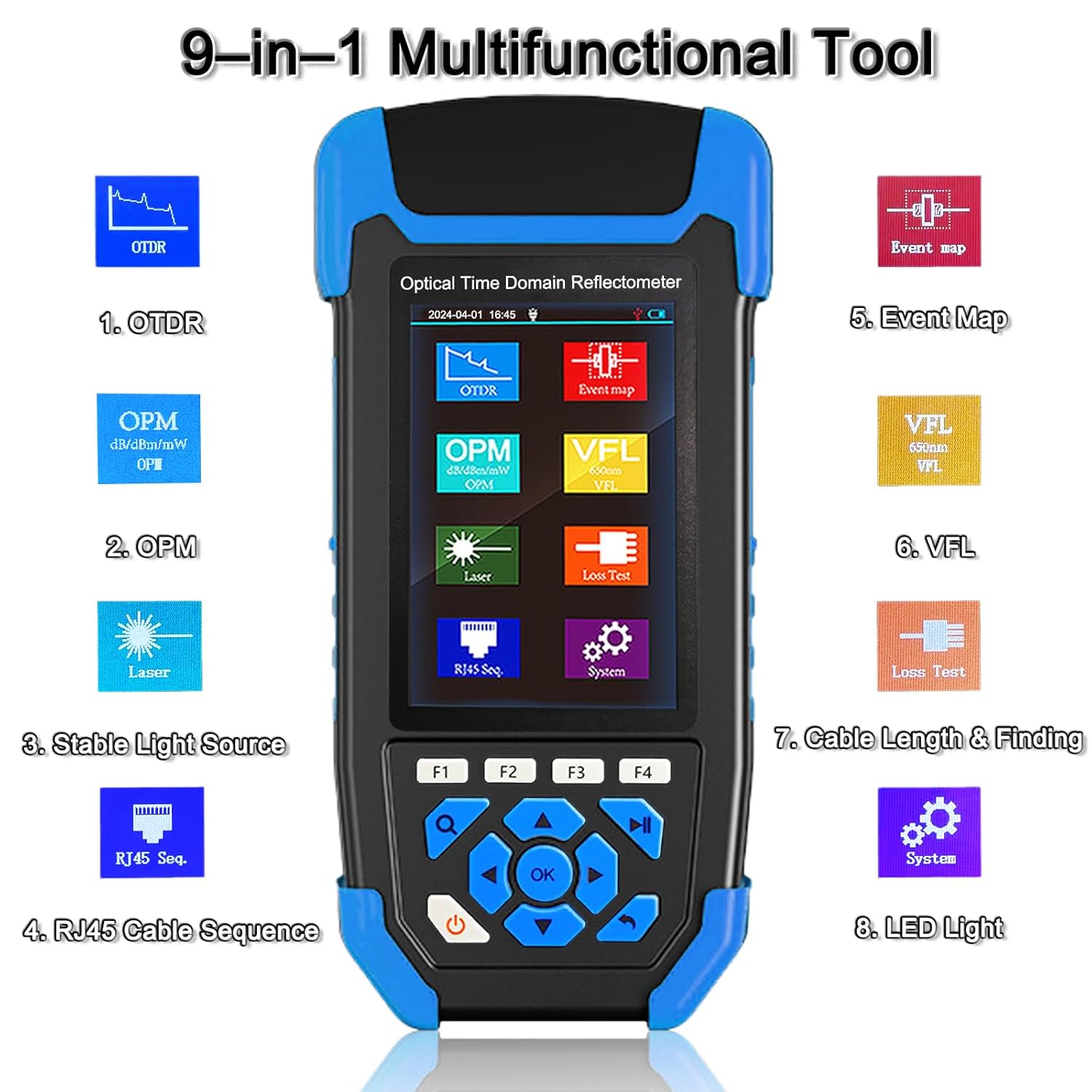

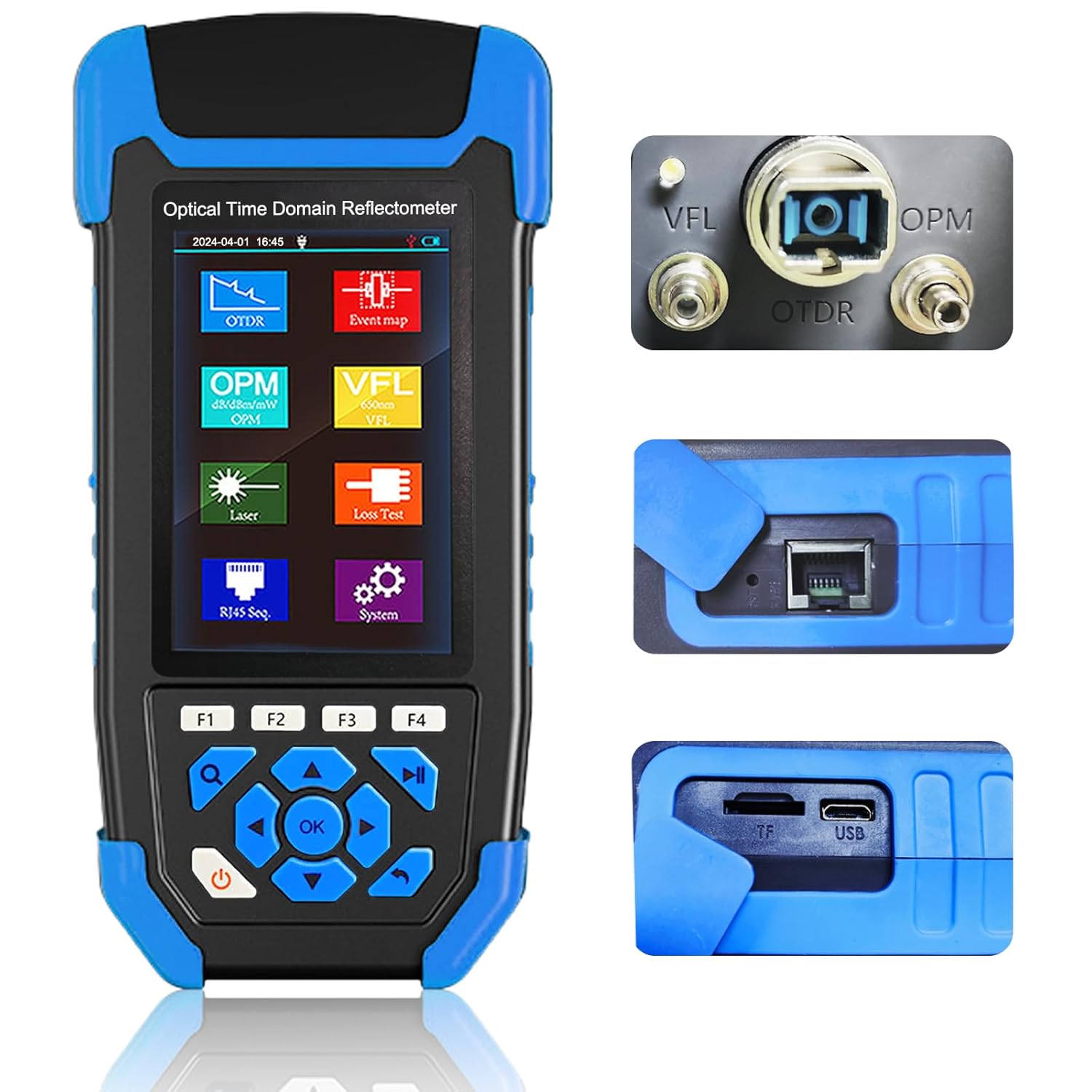

• 【BUILT-IN】: OTDR, Event Map, Power Meter, Light Source, VFL, Cable Length Measurement Tool, Cable Tracker, and RJ45 Sequencer.

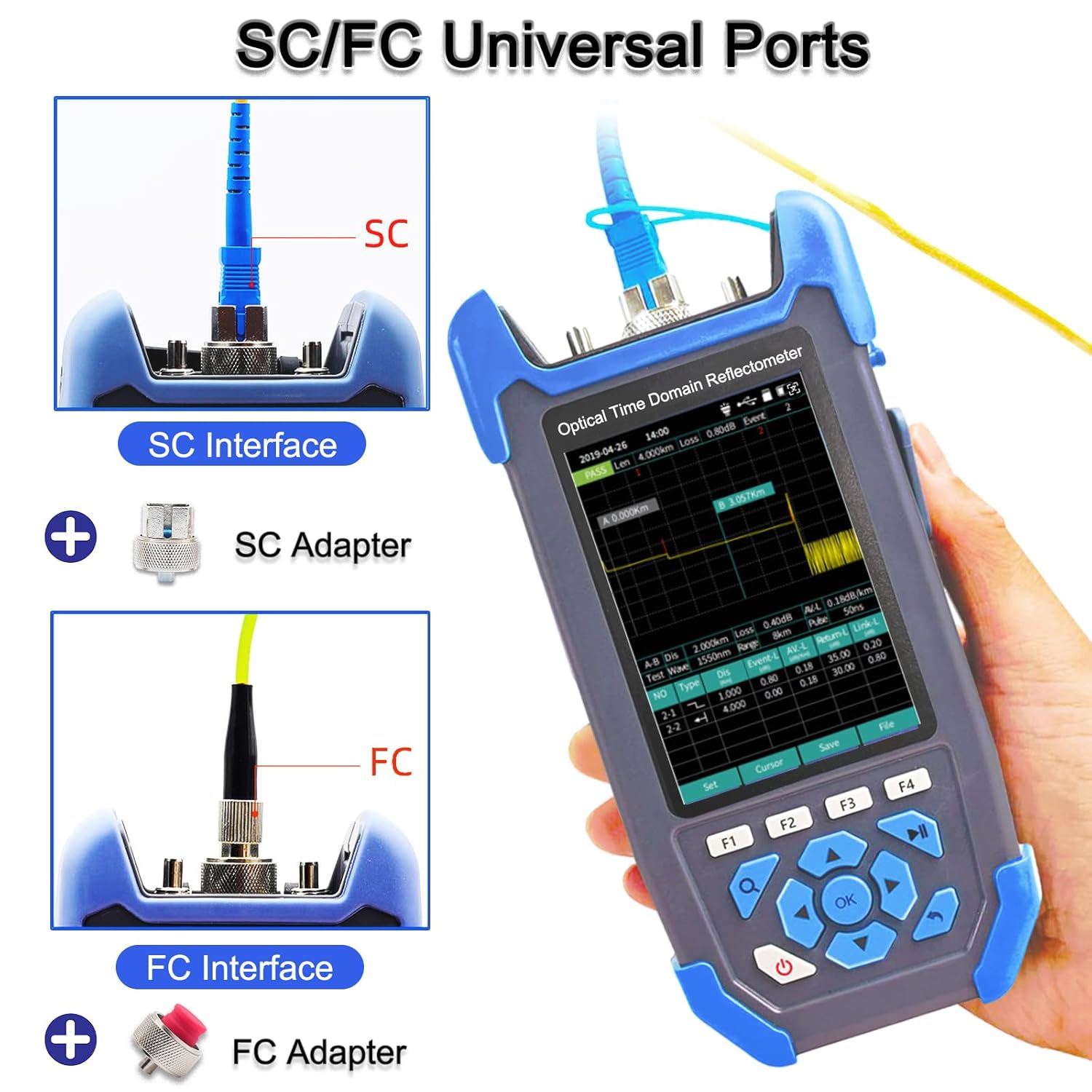

• 【Parameters】：The Mini-Pro OTDR tests at wavelengths of 1310/1550nm, with a testing range of 10m-60km.The dynamic range is 24dB/22dB (cannot test splitters, if testing splitters, the dynamic range needs to be greater than 42dB). The connector is FC/UPC (interchangeable with SC and ST).

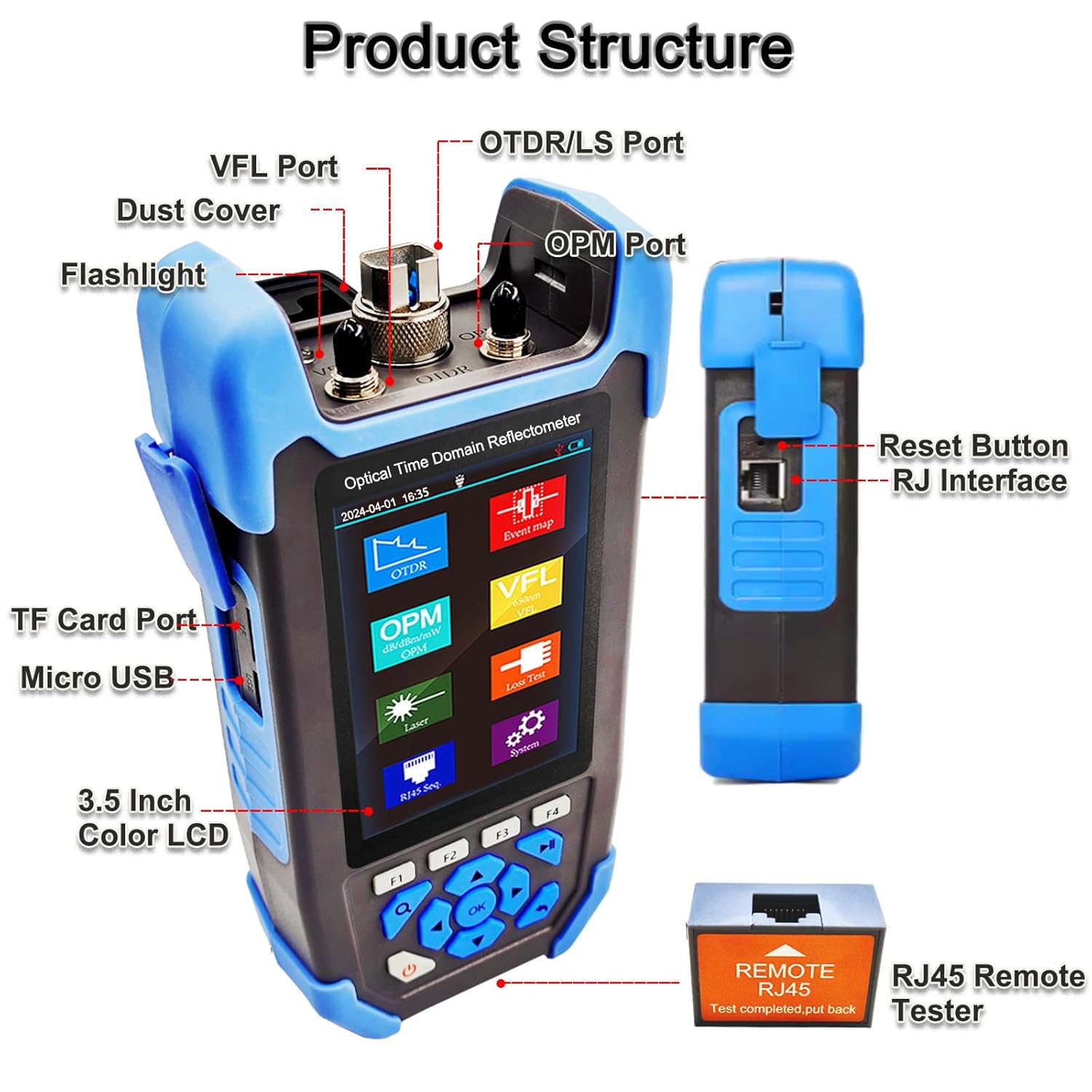

• 【INTERNAL STORAGE】: It has 600 MB of internal storage and comes with a MicroSD/TF card slot for additional memory. It includes analysis software for further data analysis or processing (note: the analysis software needs to be installed on a PC to open and print test results using the software).
• 【APPLICATION】: OTDR has a wide range of applications, including fiber optic communication, fiber optic sensing, fiber optic cable, fiber optic manufacturing, and other fields. It can help engineers quickly identify optical breakpoints and measure fiber cable length, improve fiber network maintenance and troubleshooting efficiency, and is an essential measurement tool in optical communication engineering.
• 【BATTERY】: The battery in the machine is a special lithium-ion polymer battery. The charging voltage is 5V,and the charging temperature ranges from 0℃-50℃. When the ambient temperature is too high, the charging will automatically terminate.The instrument battery should be charged every one month to avoid battery failure due to self-discharge after long time storage.
• 【ATTENTION】: When using this instrument, please do not look directly at the optical interface or the end of the optical fiber with your eyes, avoid eye damage! except for 1625nm/1650nm, all the others are non-on-line test wavelength, it will cause damage to the internal devices of the instrument if it is used forcibly!
• 【ATTENTION】:This product is a professional measuring tool.Using an OTDR requires a certain level of professional knowledge and skills. If you are unable to conduct testing, please contact us. Due to the accuracy of the product, it may not be suitable for certain scenarios. You may need to purchase a higher precision product rather than assuming a problem with our product.
